X-1003 Digital, High Power PCB Pre-Heater
for Rework of SMT Technology Boards, with very accurate six zone temperature control |
The most advanced and powerful pre-heater for SMT REWORK and REPAIR offering full Process Control, increased rework speed, board protection and operator’s convenience. X-1003 Units are extremely accurate, have user adjustable off-set and unique acceleration mode to speed-up initial warm-up from room temperature. Built-in "K" thermocouple type temperature meter provides on board means for verification of actual rework process temperatures at the point selected by the user. The X-1001 Series Pre-heaters were designed to reduce the workspace required for SMT Rework and Repair. This design emphasizes on the appropriate process control for Rework and Repair. Pre-heater Units are microprocessor controlled to maintain accuracy and to extend heating element life.
 |
|

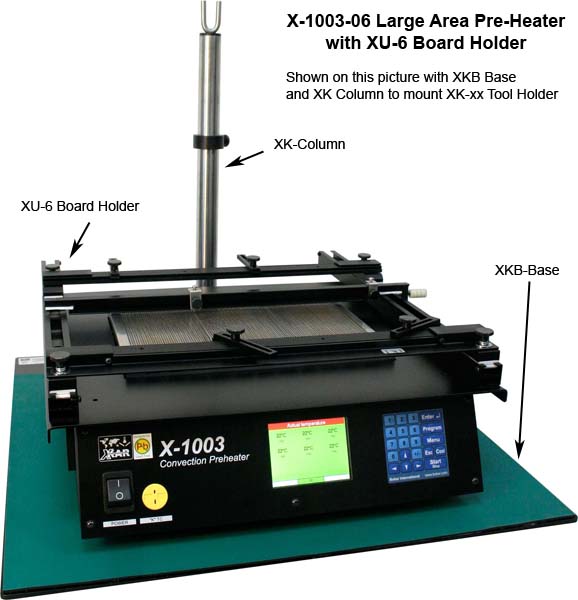

| X-1003-06 Large Area Pre-Heater with XU-6 Board Holder |
Technical Specifications:
| MODEL |
X-1003 |
X-1003-06 |
| Input Voltages |
208-240V AC |
| Power Consumption |
Max. 3650VA |
| Weight |
20 Ib (9.08 kg.) |
22.5Ib (10.2 kg.) |
| System dimensions |
16" x 19" x 4 3/4" (408 x 483 x 120 mm) |
16" x 19" x 6.5" (408 x 483 x 165 mm |
| Packaged weight |
24 lbs. (10.9 kg.) |
27 Ib (12.2 kg.) |
| Preheat Temperature measured on a PCB |
140-302 °F (60 -150 °C) |
| Preheat area |
More than 10 1/4" x 7” (261 x 180mm) |
| Average PCB preheat time to 150°C |
Less than 2 min. |
How to order
| Part Number |
Description |
| X-1003-115 |
Digital SMT High Power, Large Area Under board Pre-heater, 110-120V AC |
| X-1003-220 |
Digital SMT High Power, Large Area Under board Pre-heater, 220-240V AC |
| X-1003-06-115 |
Digital SMT High Power, Large Area Under board Pre-heater with integrated XU-6 Board Holder, 110-120V AC |
| X-1003-06-220 |
Digital SMT High Power, Large Area Under board Pre-heater with integrated XU-6 Board Holder, 220-240V AC |
|
X-1001 High Power SMT Under board Pre-heater |
The most advanced and powerful pre-heater for SMT REWORK and REPAIR offering
full Process Control, increased rework speed, board protection and operator's
convenience. The X-1001 was designed to reduce the workspace required for SMT
Rework and Repair. This design emphasizes the appropriate process control for
Rework and Repair. Pre-heater Units are microprocessor controlled to maintain
accuracy and to extend heating element life.

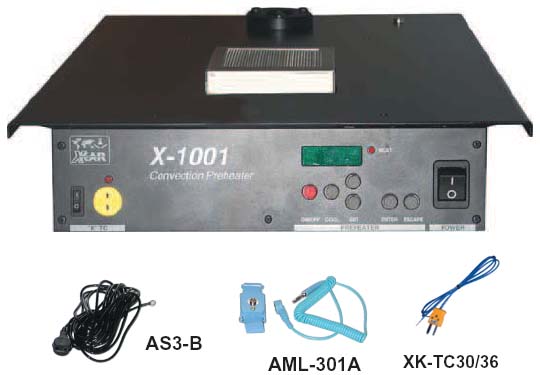

X-1001 High Power SMT Under board Pre-heater |
Features:
- Microprocessor controller.
- High power, large area pre-heating chamber providing uniform heat.
- ESD safe. Supplied with AS3-B ESD grounding cord and AML-301A wrist strap.
- Close-loop temperature PID control maintaining set temperatures with high
accuracy and extending heaters life
- Can accommodate optional XK Series tool holders with adjustable Z-Axis
control, X-Y movements and rotation.
- XFS-2 - ON-OFF optional Foot Switch (to supply bottom heat on demand).
System includes:
- X-1001 Series Base Unit.
- AS3-B ESD grounding cord.
- AML-301A Adjustable wrist strap, blue, 4mm snap, coil cord 6ft.
- XPC-16 Power cord.
- XK-TC30/36 "K" Type Thermocouple, gauge 30, lengths 36"
Available additional model:
- X-1001 De-Lux - High Power, SMT Under board Pre-heater with ESD Fiberglass
Top Plate.
Technical Specifications:
| Overall System |
| Input Voltages |
110-120, 220-240V AC |
| Power Consumption |
Max. 1080VA |
| Weight |
12.1 Ibs (5,5 kg) |
| System dimensions |
19.1" x 11.4" x 3.2" (487 x 291 x 82
mm) |
| Packaged weight |
14.4 lbs (6,5 kg) |
| Pre-heater Section |
| Max. Power |
1050 VA |
| Preheat Temperature measured on a PCB |
140-302 °F
60 -150 °C |
| Preheat area |
More than 8" square 51,6 cm2 |
| Average PCB preheat time to 150°C |
Less than 2 min. |
Recommended Additional Equipment:
- Board Holders - XU Series Board Holders (XU-1S, XU-2 ,XU-3, XCBH-1 and
XU-Mini)
- Top Hot Air Tool Holders - XK-Series Z-axis Control Tool Holders (with or
without rotation of top air tool)
- TS-100 - Ceramic Tweezer
- X-Wick - 2.6mm wick with wick dispenser
- MP-10K - Hand-held Paste and Flux Dispenser Kit
- XK-TC30/36-5 - "K" Type Thermocouple, gauge 30, lengths
36", pack of five pieces
How to order
| Part Number |
Description |
| X-1001-115 |
Digital SMT High Power, Large Area Under board Pre-heater, 110-120V AC |
| X-1001-220 |
Digital SMT High Power, Large Area Under board Pre-heater, 220-240V AC |
| X-1001-De-Lux-115 |
Digital SMT High Power, Large Area Under board Pre-heater with ESD
Fiberglass Top Plate, 110-120V AC |
| X-1001-De-Lux-220 |
Digital SMT High Power, Large Area Under board Pre-heater with ESD
Fiberglass Top Plate, 220-240V AC |
